- Traditional Horse Shoe base.
- Body inclinable through 90 deg.
- Two Huygenian Eyepieces: 10x & 15x.
- Magnification range: 100x to 600x 13.Packed in wooden cabinet with lock & key, dust cover.
Delivery time by Courier within 1 week.
MicroscopesThis model is same as above model, but instead of Rack & Pinion abbe condenser, a fixed condenser is provided with aperture selection through a Disc Diaphragm turret providing different apertures for different magnifications.
Delivery time by Courier within 1 week.
- Traditional Horse Shoe base.
- Body inclinable through 90 deg.
- Two Huygenian Eyepieces: 6x & 10x.
- Magnification range - 60x to 1000x.
Delivery time by Courier within 1 week.

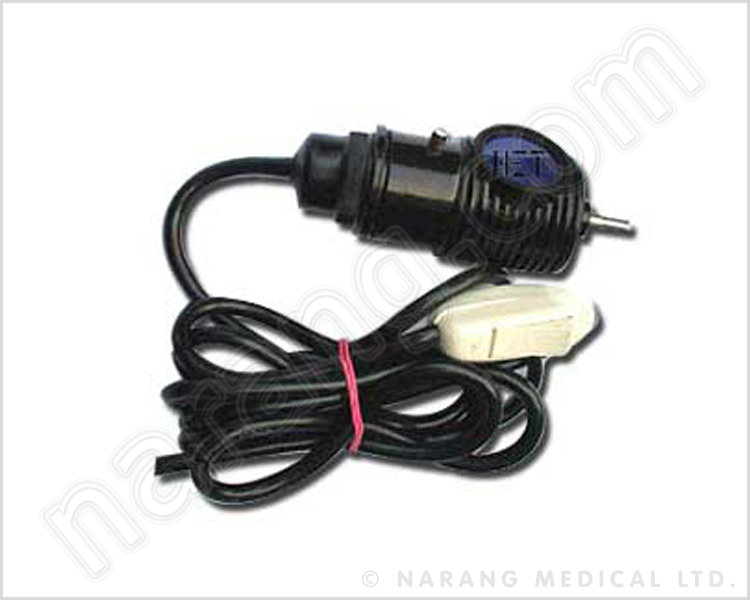

- Light Attachment (Substage Lamp).
- Suitable for Student Microscopes Model MC001, MC002 & MC003.
Delivery time by Courier within 1 week.
- Separate Coarse and Fine Focusing through slides travelling on ball bearing guideways, enables highest degree of sensitivity and eliminates back lash errors.
- Quadruple revolving nosepiece, moving on ball bearings for common center of field in each objective.
- Low-drive coaxial mechanical stage for X & Y movement of slides up to 75x50 mm with graduated verniers.
- Moveable substage condenser with N.A. 1.25, Iris Diaphragm and filter holder.
Delivery time by Courier within 1 week.
This model is same as above model, but instead of halogen bulb, illumination is provided through Plano-concave mirror mounted on a well contoured base.
Delivery time by Courier within 1 week.

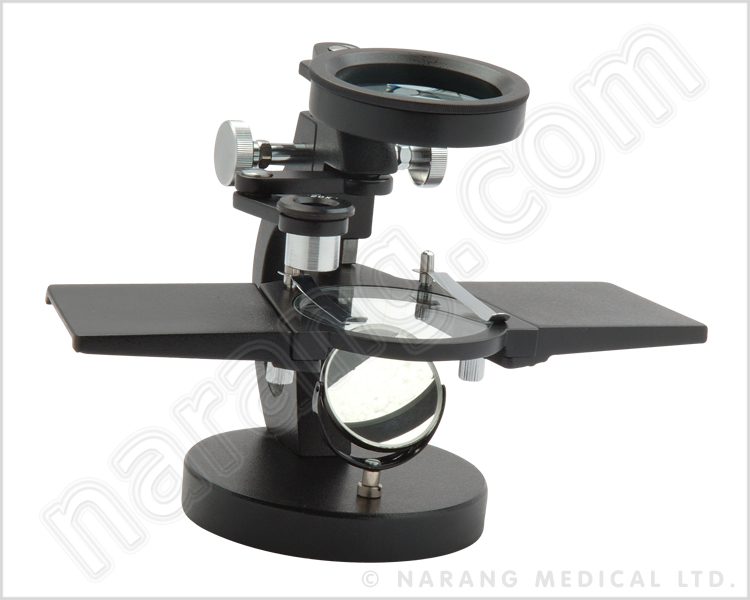

- Optics - 10x & 20x Eyepiece & Special Bull Eye Lens 83mm diameter.
- Object Stage Size - 100mm x 100mm with glass plate.
Delivery time by Courier within 1 week.
- The school microscope is designed for young students of elementary education. It meets the needs of Science Teaching and demonstration to beginners at school level.
- Vertical Monocular Body Height - 275mm, Mechanical Tube Length - 160mm, Fixed Square Stage - 75x85mm, Rack and Pinion Motion for focussing, Plan & Concave Mirror 38mm. Complete packed in Strong cardboard box.
- Optical Combination: Achromatic Objectives: 10x
- Huygenian Eyepiece: 10x or 15x
- Magnification:100x or 150x
- Optional : Wooden storage carrying case (with extra charges. Please see price list).
Delivery time by Courier within 1 week.

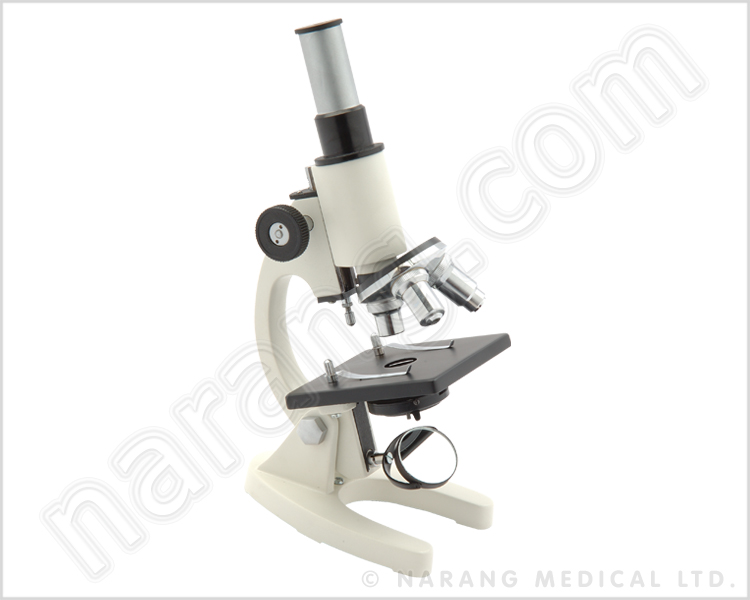

- Stand : Stable and robust, assembled from Aluminium Metal parts. Heavy Metal Base Stand of cast iron for body stability. Total Height 285mm.
- Body : Monocular Tube inclinable upto 90°, Mechanical Tube length 160mm.
- Stage : Fixed Square Stage Size 100x100mm with Stage Clips.
- Nosepiece : Triple revolving nosepiece with positive centering & click stops.
- Condenser : Adjustable variable Iris Diaphragm with Filter-holder.
- Focussing : By Vertical movement of body tube through coarse motion knobs having Rack-Pinion movement.
- Safety Device : Adjustable down movement stopper for preventing accidental damage to slides.
- Illumination : Plano-Concave Mirror diameter 50mm mounted on gimbal mount.
- Objectives : Achromatic 4x, 10x & 40x SL.
- Eyepieces : Huygenian 10x and 15x.
Accessories - Vinyl Cover, Duster, Cleaning Brush, Filter & Operating Manual. Packing -In full mould Styrofoam/Thermocol Container.
Optional - Mechanical Stage, Wooden Storing Cabinet, Pointer Eyepiece, Spare Objectives, Sub-Stage Lamp for 220V/110V. (with extra charges).
Delivery time by Courier within 1 week.
All specification are as per above Model MC520 but with single objective 10x and without fitting of a Nosepiece.
Delivery time by Courier within 1 week.
All specifications are as per Model MC520 but, with the addition of an inclined Eyepiece Tube for comfortable & convenient observation.
Delivery time by Courier within 1 week.
- Stand - Stable and Robust, assembled from Aluminium Die-Cast parts.
- Body - Monocular Tube inclinable upto 90º, Mechanical Tube length 160mm.
- Stage - Fixed Square Stage Size 120x120mm with stage Clips.
- Nosepiece - Triple revolving nosepiece with positive centering & click stops.
- Condenser - Fixed Condenser (N.A.1.2) with Iris diaphragm & filter holder.
- Focussing - By vertical movement of body tube, coarse adjustment by rack-pinion movement and fine by screw lever mechanism.
- Safety Device - Adjustable down movement stopper for preventing accidental damage to slides.
- Illumination - Plano-Concave Mirror diameter 50mm mounted on gimbal mount.
- Objectives - Achromatic 10x & 40x.
- Eyepieces - Huygenian 5x, 10x, 15x (Any two) or Wide field 10x.
- Accessories - Vinyl Cover, Duster, Cleaning Brush, Filter.
- Packing - In full mould Styrofoam/Thermocol Container.
- Optional - Mechanical Stage, Wooden Storing Cabinet with Lock and Key, Draw Tube, Spare Objectives, Sub-Stage Lamp for 220V/110V. (with extra charges).
Delivery time by Courier within 1 week.

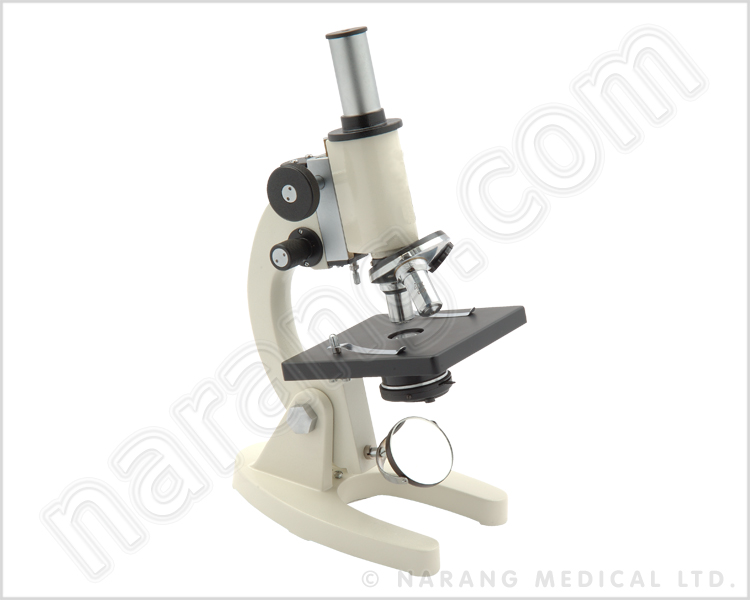

All other specifications are as per Model MC530
- Condenser : Iris Diaphrgm & Filter.
- Eyepieces : 5x, 10x, 15x (Any two).
- Objectives : 10x-40x.
- Magnification : 50x-600x.
Delivery time by Courier within 1 week.
All other specifications are as per Model MC530
- Condenser : Iris Diaphrgm & Filter.
- Eyepieces : 5x, 10x, 15x (Any two).
- Objectives : 10x-40x. SL
- Magnification : 50x-600x.
Delivery time by Courier within 1 week.

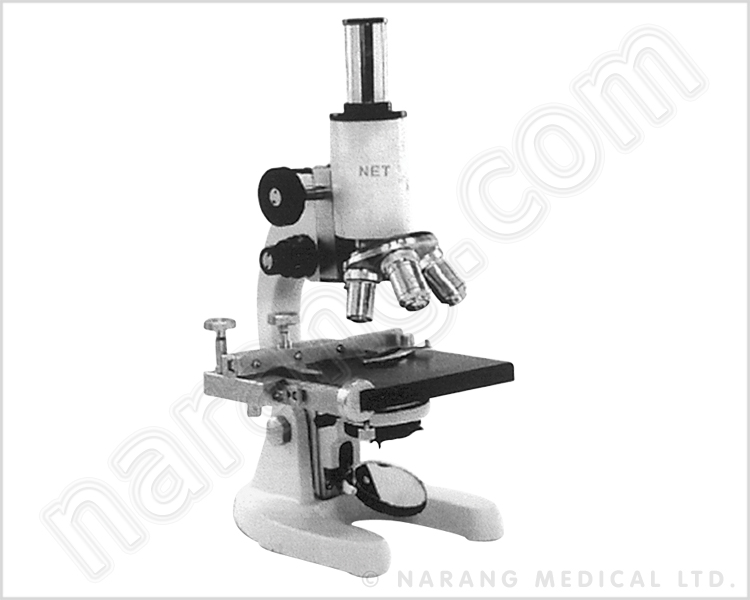

- Stand- Stable and Robust, assembled from Aluminium DIE-CAST parts.
- Body - Monocular Tube inclinable upto 90°, Mechanical Tube length 160mm.
- Stage - Graduated mechanical stage size 120x120mm with convenient adjustment for slide manipulation upto 40x75mm.
- Nosepiece - Quadruple revolving nosepiece with positive centering & click stops.
- Condenser - Bright field, Abbe N.A. 1.25 with iris diaphragm and swing out filter holder can be moved through rack-pinion. The condenser Unit incorporates high efficiency optical system for optimum utilization of light from low to high magnification.
- Focussing - Separate knobs are provided for coarse and fine focussing adjustments. Coarse adjustment can be made through Rack-Pinion and fine movement by screw-lever mechanism having a graduated knob on the right side.
- Safety Device - Adjustable down movement stopper for preventing accidental damage to slides.
- Illumination - Plano-Concave Mirror diameter 50mm mounted on gimbal mount.
- Objectives - Achromatic 10x, 40x SL and 100x SL Oil Immersion.
- Eyepieces - Huygenian 5x, 6x, 10x, 15x (any two) or Wide Field 10x.
- Accessories - Vinyl Cover, Duster, Cleaning Brush, Filter.
- Packing - In full mould Styrofoam/Thermocol Container.
- Optional - Coaxial Mechanical Stage, Wooden Storing Cabinet with Lock and Key, Draw Tube, Spare Objectives, Sub-Stage Lamp for 220/110V (with extra charges).
Delivery time by Courier within 1 week.
All specification are as per above Model MC540 but with Anti-Reflection hard coated optics.
Delivery time by Courier within 1 week.

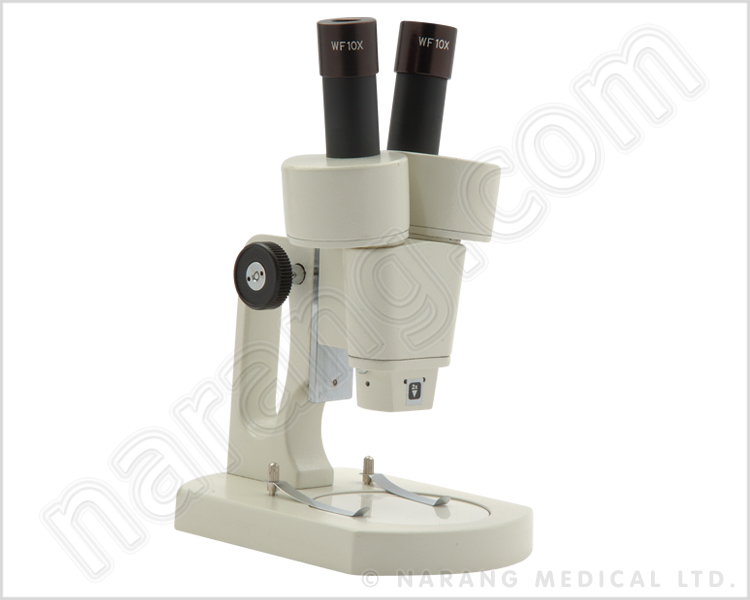

The student stereo microscope has been designed for Dissection/Inspection of Specimens in Biology. Precisely designed long working distance objectives & wide field eyepieces produce an extremely large, brilliant & bright images. It is light in weight having sturdy base, stage with clips and reversible black & white plate, straight Binocular Head with Interpupillary adjustment & hand grip on stand for safe handling. Fixed Achromatic Objectives 2x or 3x & wide-field eyepieces WF 10x or WF 15x (paired) are available. Supplied complete in a wooden storing cabinet at an affordable price.
Delivery time by Courier within 1 week.
All specifications are as per above Model MC560 but, with transillumination base suitable for artificial transmitted light with detachable elbow hand rest.
Delivery time by Courier within 1 week.
Delivery time by Courier within 1 week.

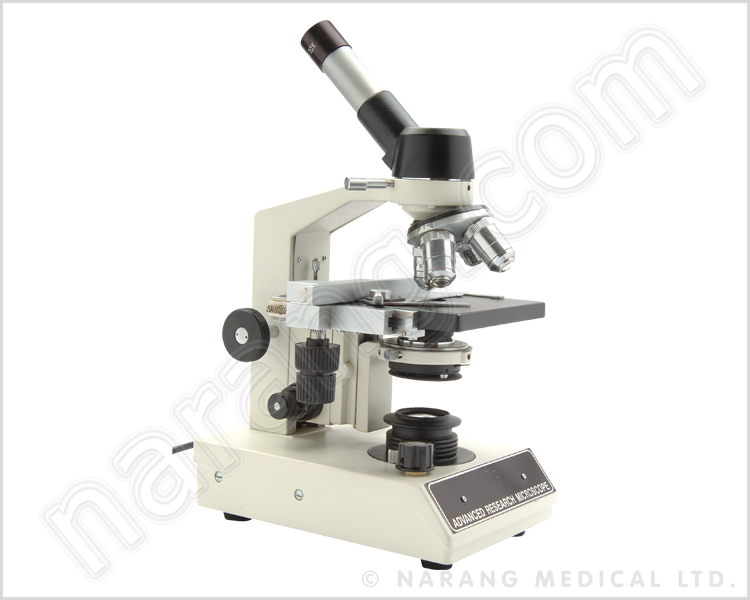

- Observation Head - Monocular 45 degree inclined tube rotatable through 360 degree for any professional operation and can be locked in any direction.
- Stand - One piece die cast arm and large size rectangular, heavy stable base with Transformer and electrical fittings concealed inside.
- Body - Monocular Tube inclinable upto 90°, Mechanical Tube length 160mm.
- Stage - Graduated mechanical stage size 120x120mm with convenient adjustment for slide manipulation upto 40x75mm.
- Nosepiece - Precise Quadruple revolving Nosepiece with precise centering and positive click stops ensuring accurate position of objectives.
- Stage - Built-in graduated mechanical stage of size 135x120mm is controlled by convenient low co-axial positioned knobs for easy and smooth scan of the specimen slides over entire range of 50x75mm.
- Condenser - Bright field, Abbe N.A. 1.25 with Iris-diaphragm and swing out filter holder can be moved through rack-pinon. The Condenser unit incorporates high efficiency optical system for optimum utilization of light from low to high magnification. It is interchangeable with professional accessories.
- Focussing - By vertical movement of stage, coarse adjustment by rack-pinion and fine movement by screw lever mechanism driven by graduated knob.
- Illumination - 6V-20W Halogen Lamp fitted directly under the field lenses operated through solid state variable controlled transformer 220 Volts. Reflector attachment for working in day light is also provided.
- Objectives - Achromatic 4x, 10x, 40x SL and 100x SL Oil Immersion.
- Eyepieces - Wide Field WF10x.
- Accessories - Vinyl Cover, Duster, Cleaning Brush, Filter, 25ml of Immersion Oil, a roll of Lens paper, 100ml of lens cleaning solution and Operating Manual.
- Packing - In Wooden Storing Cabinet with Lock & Key (with extra charges).
Delivery time by Courier within 1 week.
All specifications are as per above Model MC610 but with Achromatic Hard Coated Standard Objectives 4x, 10x, 40x SL and 100x SL Oil Immersion.
Delivery time by Courier within 1 week.
All specifications are as per above Model MC610 but with DIN Size Achromatic Hard Coated Objectives 4x, 10x, 40x SL and 100x SL Oil Immersion.
Delivery time by Courier within 1 week.

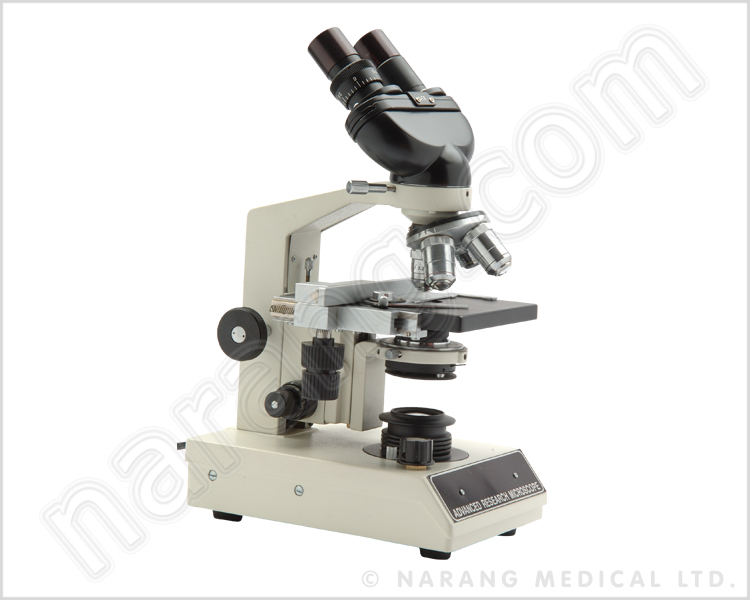

- Observation Head - Binocular Head is equipped with Standard 45 degree inclined observation tubes, rotatable through 360 degree and can be fixed in any direction with a clamp screw. Interpupillary distance from 53 to 75mm and Diopter adjustments are provided.
- Stand - One piece die cast arm and large size rectangular, heavy stable base with Transformer and electrical fittings concealed inside.
- Body - Monocular Tube inclinable upto 90°, Mechanical Tube length 160mm.
- Stage - Graduated mechanical stage size 120x120mm with convenient adjustment for slide manipulation upto 40x75mm.
- Nosepiece - Precise Quadruple revolving Nosepiece with precise centering and positive click stops ensuring accurate position of objectives.
- Stage - Built-in graduated mechanical stage of size 135x120mm is controlled by convenient low co-axial positioned knobs for easy and smooth scan of the specimen slides over entire range of 50x75mm.
- Condenser - Bright field, Abbe N.A. 1.25 with Iris-diaphragm and swing out filter holder can be moved through rack-pinon. The Condenser unit incorporates high efficiency optical system for optimum utilization of light from low to high magnification. It is interchangeable with professional accessories.
- Focussing - By vertical movement of stage, coarse adjustment by rack-pinion and fine movement by screw lever mechanism driven by graduated knob.
- Illumination - 6V-20W Halogen Lamp fitted directly under the field lenses operated through solid state variable controlled transformer 220 Volts. Reflector attachment for working in day light is also provided.
- Objectives - Achromatic 4x, 10x, 40x SL and 100x SL Oil Immersion.
- Eyepieces - Wide Field WF10x.
- Accessories - Vinyl Cover, Duster, Cleaning Brush, Filter, 25ml of Immersion Oil, a roll of Lens paper, 100ml of lens cleaning solution and Operating Manual.
- Packing - In Wooden Storing Cabinet with Lock & Key (with extra charges).
Delivery time by Courier within 1 week.
All specifications are as per above Model MC620 but with Achromatic Hard Coated Standard Objectives 4x, 10x, 40x SL and 100x SL Oil Immersion.
Delivery time by Courier within 1 week.
All specifications are as per above Model MC620 but with DIN Size Achromatic Hard Coated Objectives 4x, 10x, 40x SL and 100x SL Oil Immersion.
Delivery time by Courier within 1 week.
